Monitoring solution for LNG point supply pipeline
Introduction
Our sensor and instrument products in the form of Internet of Things can be quickly connected to the cloud platform system, realize the monitoring through computers and mobile phones simultaneously. By setting the alarm value, the user can realize real-time monitoring and real-time alarm of the liquid level, pressure and temperature of the cryogenic equipment containers such as gas cylinders, storage tanks and ISO tanks, as well as the pressure and temperature on the pipeline. It can effectively improve the monitoring of low temperature equipment and pipeline in point supply, reduce manpower expenditure, reduce input cost, improve the safety of equipment, and realize visual management of point supply process.
The instruments can be installed and used are: wireless remote transmission thermometer, wireless remote transmission pressure gauge. (Click the picture to view the product introduction)

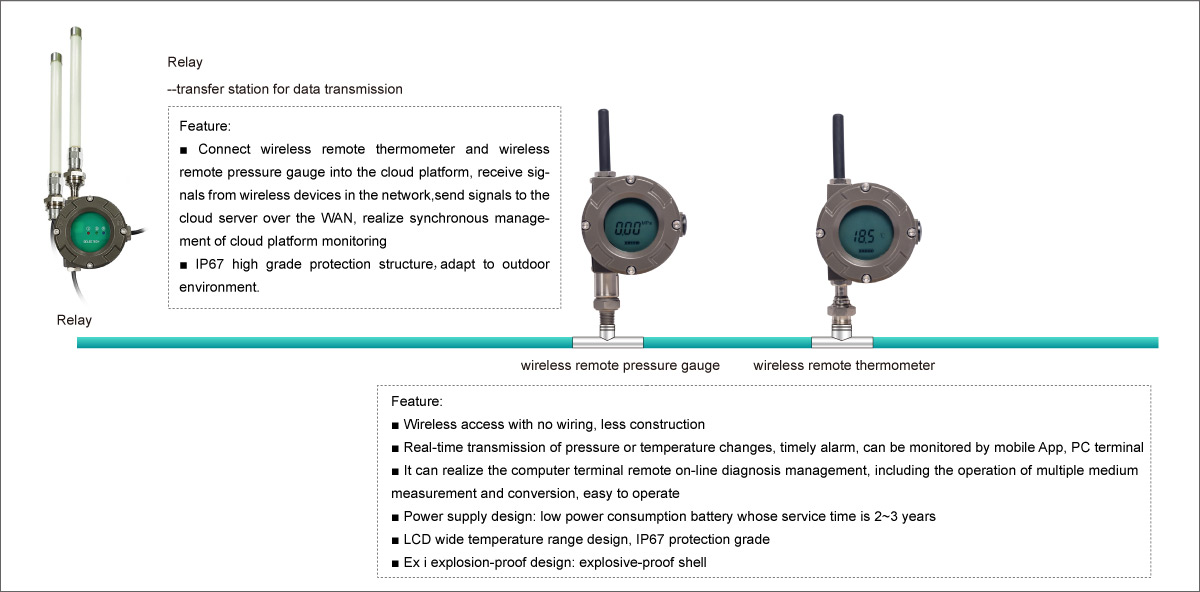

Schematic diagram of wireless remote monitoring
Cloud Platform Intelligence Control System:
Features of Mobile APP Client:
■ To view the information of liquid level, pressure, temperature, location, consumption rate and available time of tanks, liquid tankers, tank containers, cylinders, tube trailers, vehicular LNG cylinders, etc.
■ To view the temperature and pressure of the pipelines, such as gasification, pressure adjustment and so on
■ To view the instantaneous flow rate and accumulative flow of the flowmeter
■ Real time push and reminding of liquid level, pressure, temperature, battery voltage alert information
■ Shows the distribution of all the equipment belong to the company and the real time site location in the map
■ Historical data query, changes in level, pressure, temperature, gas consumption and so on over the past period of time
■ Charging statistics, reflect charging quantities, time points and other information in a period.
Features of PC end software:
■ To view the information of liquid level, pressure, temperature, location, consumption rate and available time of tanks, liquid tankers, tank containers, cylinders, tube trailers, vehicular LNG cylinders, etc., sheet and chart dual-mode display, more intuitive monitoring
■ Shows the distribution of all the equipment and sites belong to the company in the map
■ To view the temperature and pressure of the pipelines, such as gasification, pressure adjustment and so on
■ To view the instantaneous flow rate and accumulative flow of the flowmeter
■ User management: adding, modifying user unit information and authority, assign sites to users
■ Site management: view site name, IMEI number and detail information, add, modify the site name, display site location in the map;
■ Device management: view the detailed parameters of the device, edit and modify device detail information，set liquid level, pressure, temperature, battery voltage alert thresholds, alert clearly and push alert information to mobile APP client.
■ System query: provide changes of device liquid level, pressure, temperature over a past period of time, can be analyzed in data or curve chart, support export data in XLS format, provide the movement track of the device in a certain period of time, provide data query and comparison between two devices, convenient to compare the data from devices produced by different manufacturers.
