Monitoring scheme of medical gas
Introduction
With DeleeTech full set of systematic intelligent hardware equipment, medical oxygen operation subsystem, medical vacuum operation subsystem, medical air operation subsystem, other gas operation subsystem, each district operation monitoring subsystem have been created. Medical gases such as medical oxygen, carbon dioxide, laughing gas, argon, nitrogen, nitrous oxide, etc have been fully covered for system monitoring. Realize the monitoring of gas level, pressure, temperature, gas leakage and other things. Medical gas IoT management system has been early established in China. At present, it has been installed and used in many hospitals in Beijing.

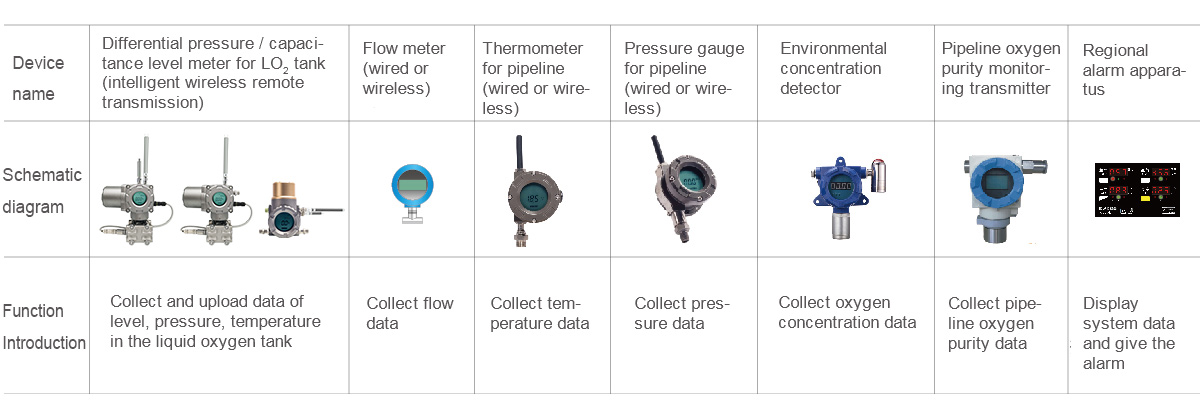

Hardware constitution:
You can choose to install differential pressure instruments for liquid oxygen tank measurement and monitoring. There are a lot of choices. For details you can click the tank monitoring scheme. We recommend the following instrument. (click the picture to view the product)
Schematic diagram of measurement scheme for compound transmitter (differential pressure):

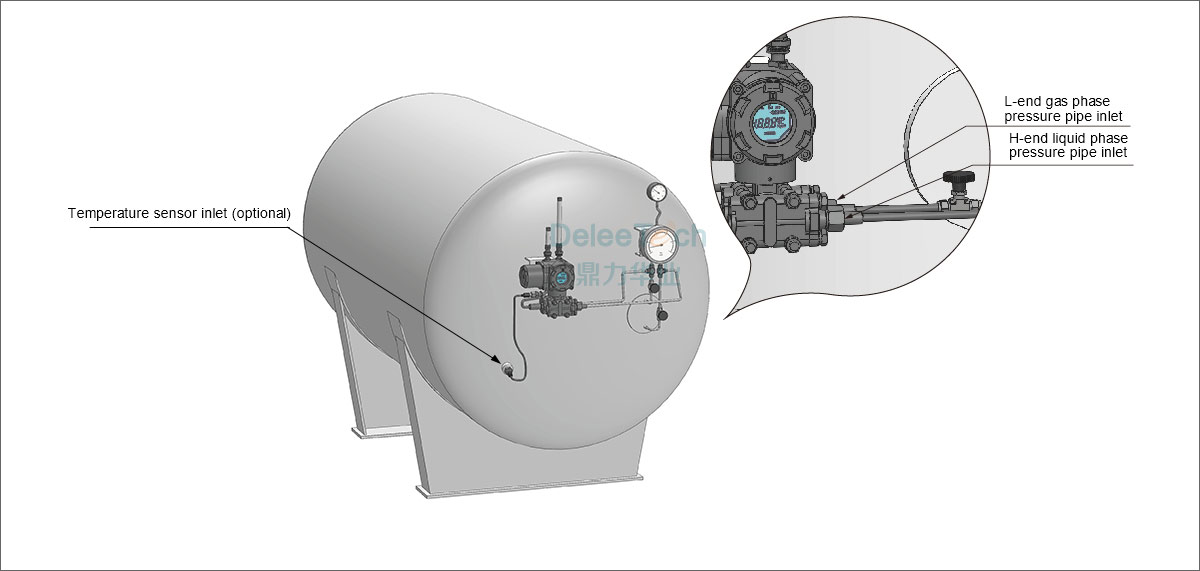

Installation schematic diagram of differential pressure compound transmitter for horizontal tank:
Cloud Platform Intelligence Control System:
Features of Mobile APP Client:
■ To view the information of liquid level, pressure, temperature, location, consumption rate and available time of tanks, liquid tankers, tank containers, cylinders, tube trailers, vehicular LNG cylinders, etc.
■ To view the temperature and pressure of the pipelines, such as gasification, pressure adjustment and so on
■ To view the instantaneous flow rate and accumulative flow of the flowmeter
■ Real time push and reminding of liquid level, pressure, temperature, battery voltage alert information
■ Shows the distribution of all the equipment belong to the company and the real time site location in the map
■ Historical data query, changes in level, pressure, temperature, gas consumption and so on over the past period of time
■ Charging statistics, reflect charging quantities, time points and other information in a period.
Features of PC end software:
■ To view the information of liquid level, pressure, temperature, location, consumption rate and available time of tanks, liquid tankers, tank containers, cylinders, tube trailers, vehicular LNG cylinders, etc., sheet and chart dual-mode display, more intuitive monitoring
■ Shows the distribution of all the equipment and sites belong to the company in the map
■ To view the temperature and pressure of the pipelines, such as gasification, pressure adjustment and so on
■ To view the instantaneous flow rate and accumulative flow of the flowmeter
■ User management: adding, modifying user unit information and authority, assign sites to users
■ Site management: view site name, IMEI number and detail information, add, modify the site name, display site location in the map;
■ Device management: view the detailed parameters of the device, edit and modify device detail information，set liquid level, pressure, temperature, battery voltage alert thresholds, alert clearly and push alert information to mobile APP client.
■ System query: provide changes of device liquid level, pressure, temperature over a past period of time, can be analyzed in data or curve chart, support export data in XLS format, provide the movement track of the device in a certain period of time, provide data query and comparison between two devices, convenient to compare the data from devices produced by different manufacturers.
