Introduction

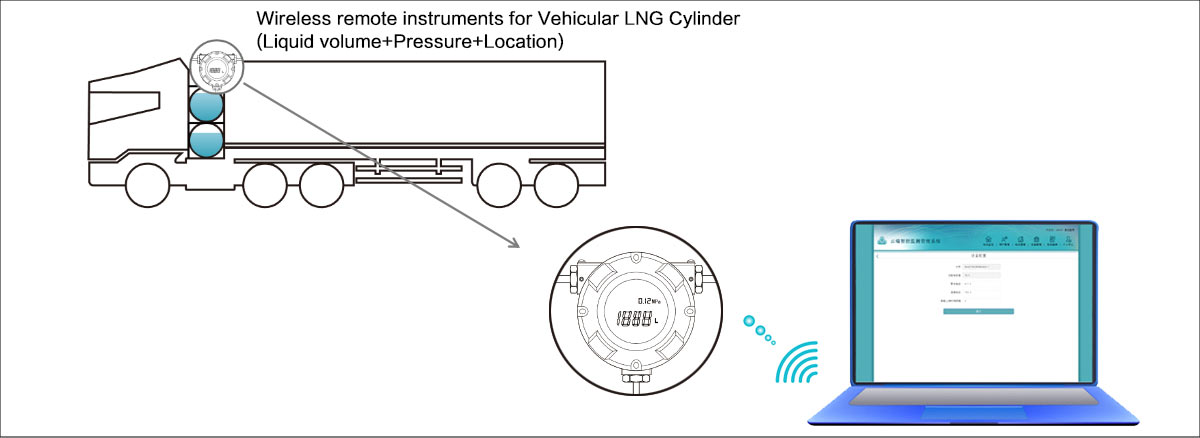

The IoT intelligent instrument produced by our company can be quickly connected to the cloud, realizing synchronous monitoring on computer and mobile App.It is suitable for real-time monitoring of liquid volume, pressure, positioning and other data of on-board gas cylinders powered by LNG and hydrogen energy, real-time alarm reporting, and computer terminal view of vehicle movement track. It has LCD display of intelligent transmitter and remote calibration and configuration of intelligent liquid level meter. The driver's position in the car can be connected to display instrument or instrument panel, and the liquid volume in the vehicular cylinder can be managed visually. The new Model MTU of vehicular cylinder can also realize mobile phone NFC calibration instrument, cloud storage calibration data, cloud download backup data. It is convenient to replace the liquid level meter. It has effectively strengthened the monitoring of vehicular cylinder, reduced the input cost, improved the operation safety and convenience of  new energy vehicles, and improved the work efficiency of personnel.
(Click the picture to view the product introduction)

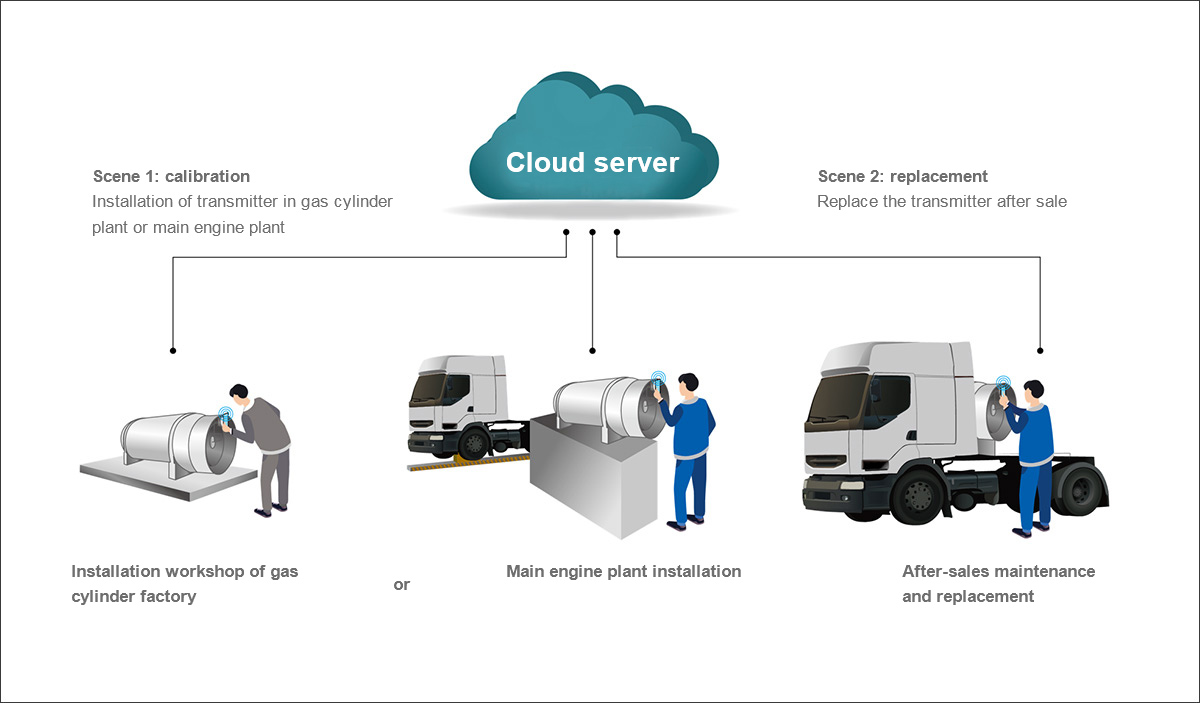

2. Remote calibration of intelligent level gauges (without memory cable, no need for a communicator). As shown below:

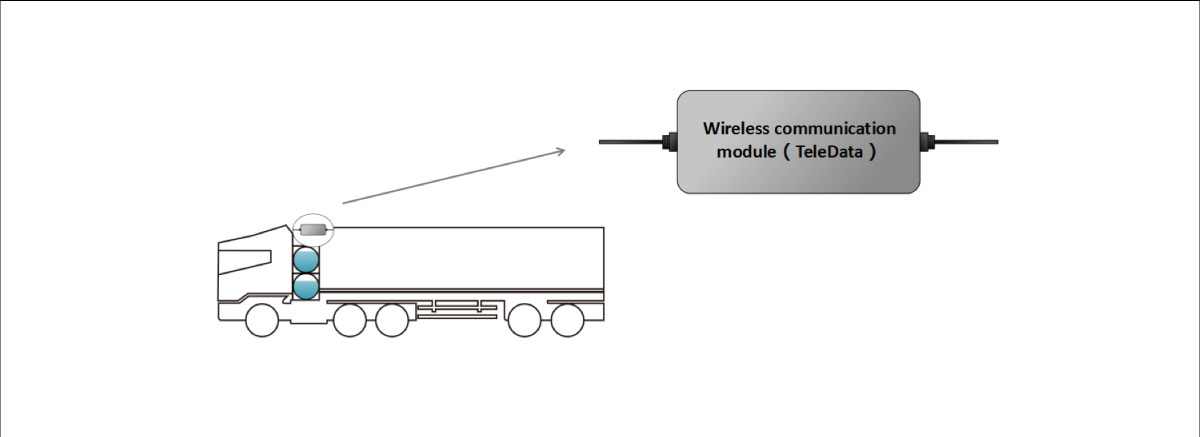

3. The intelligent level gauge will wirelessly connect the vehicular LNG cylinder into the network through the TeleDate module. The computer and mobile phone can remotely monitor and manage synchronously, realizing real-time monitoring of liquid level, pressure and position. Functions like liquid addition statistics, movement track map display, maintenance records, etc are clear at a glance. As shown below：

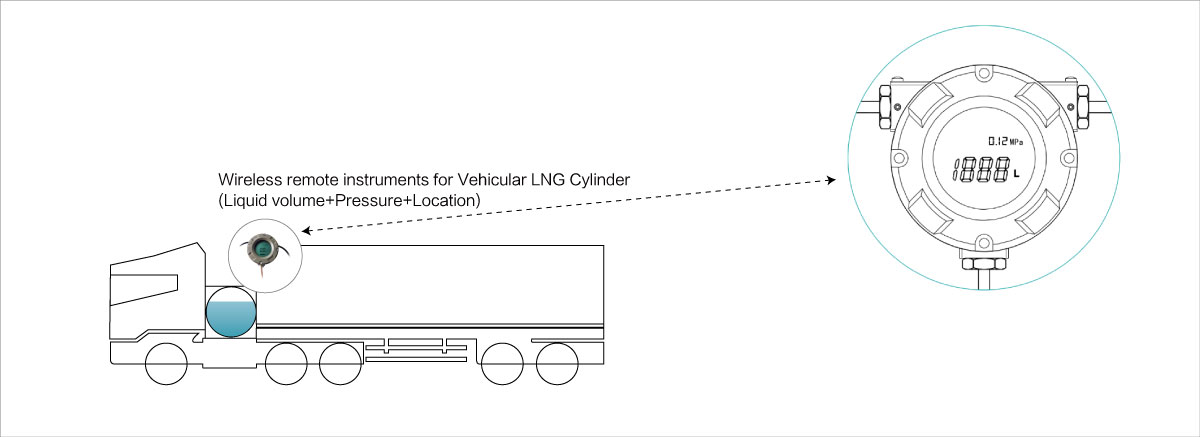

liquid level + pressure, NFC calibration, data cloud storage


Features:
■ Measurement of liquid level and pressure
■ Replace the memory cable, data cloud management
■ Support mobile phone NFC connection and calibration, cloud storage of calibrated data which would be permanently effective
■ Easy to replace, no need for professional equipment
■ Realize equipment online detection and maintenance, as well as equipment cloud management
■ Record and analyze the process data, analyze the cylinder performance status according to the pressure rise
■ Parameters can be set locally and in the cloud
■ OTA firmware upgrade

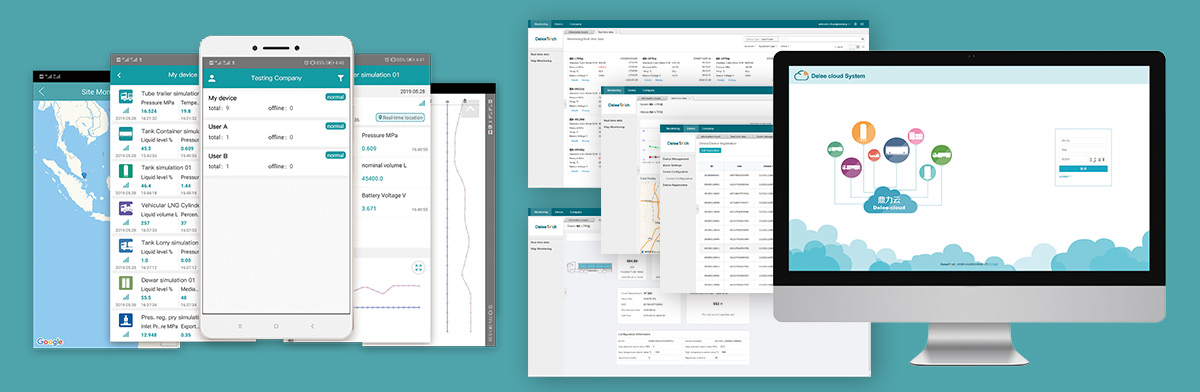

Cloud Platform Intelligence Control System:



Features of Mobile APP Client:

■ To view the information of liquid level, pressure, temperature, location, consumption rate and available time of tanks, liquid tankers, tank containers, cylinders, tube trailers, vehicular LNG cylinders, etc.
■ To view the temperature and pressure of the pipelines, such as gasification, pressure adjustment and so on
■ To view the instantaneous flow rate and accumulative flow of the flowmeter
■ Real time push and reminding of liquid level, pressure, temperature, battery voltage alert information
■ Shows the distribution of all the equipment belong to the company and the real time site location in the map
■ Historical data query, changes in level, pressure, temperature, gas consumption and so on over the past period of time
■ Charging statistics, reflect charging quantities, time points and other information in a period.


Features of PC end software:

■ To view the information of liquid level, pressure, temperature, location, consumption rate and available time of tanks, liquid tankers, tank containers, cylinders, tube trailers, vehicular LNG cylinders, etc., sheet and chart dual-mode display, more intuitive monitoring
■ Shows the distribution of all the equipment and sites belong to the company in the map
■ To view the temperature and pressure of the pipelines, such as gasification, pressure adjustment and so on
■ To view the instantaneous flow rate and accumulative flow of the flowmeter
■ User management: adding, modifying user unit information and authority, assign sites to users
■ Site management: view site name, IMEI number and detail information, add, modify the site name, display site location in the map;
■ Device management: view the detailed parameters of the device, edit and modify device detail information，set liquid level, pressure, temperature, battery voltage alert thresholds, alert clearly and push alert information to mobile APP client.
■ System query: provide changes of device liquid level, pressure, temperature over a past period of time, can be analyzed in data or curve chart, support export data in XLS format, provide the movement track of the device in a certain period of time, provide  data query and comparison between two devices, convenient to compare the data from devices produced by different manufacturers.

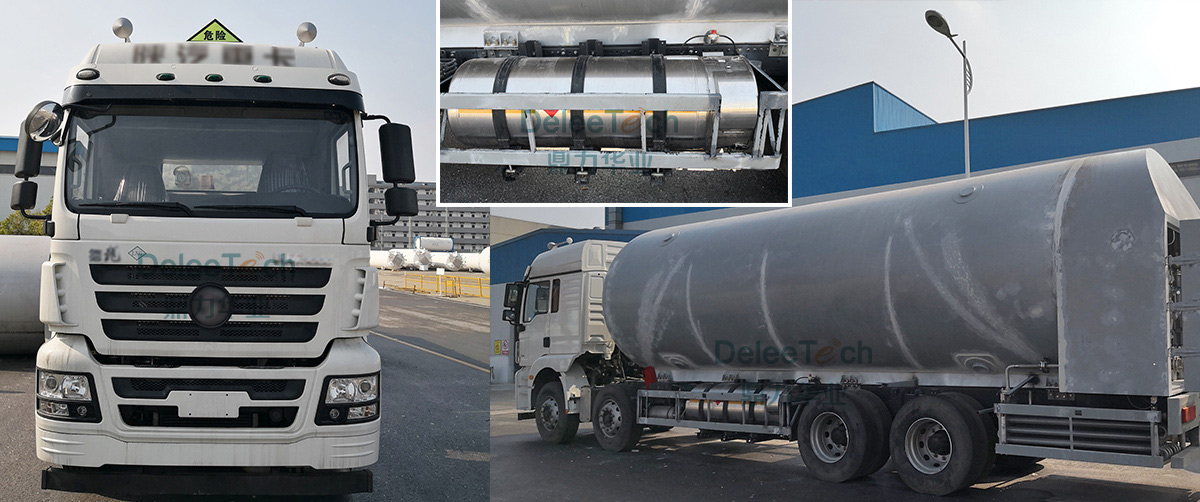

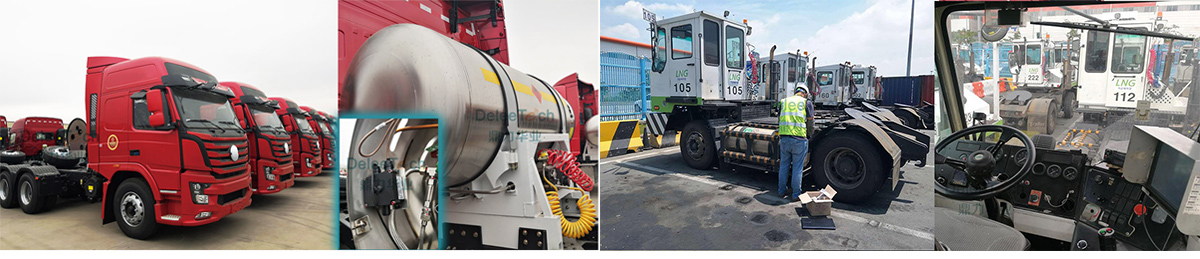

Typical application cases:
